Qwik-Freezer™ Portable CO2 Pipe Freezing Equipment

Plug it by Freezing it….!

The HFT® Pipestoppers® Qwik-Freezer™ Pipe Freezing Equipment uses liquid carbon dioxide (CO2) to freeze stationary water in any chosen sections of pipe or tubing. By producing very low ‘dry ice’ temperatures, Qwik- Freezer™ forms a secure in-line ice plug.

This temporarily isolates the water in the system and allows repairs or modification to be made without draining or shutting off systems.

Save Money and Time Draining and Refilling

HFT Pipestoppers Qwik Freeze Pipe Freezing Freezer Quick Pipe Stopping

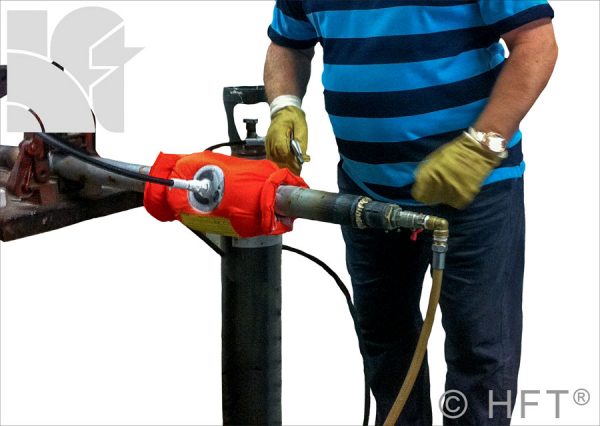

The Qwik-Freezer™ kit is easy to use. A specially designed jacket is wrapped around the pipe at the point where the freeze is required. A nozzle on the jacket is then coupled to a cylinder of liquid CO2 by means of a high-pressure hose.

When liquid CO2 is injected into the space between the jacket and the pipe, it immediately expands to form a solid carbon dioxide (dry ice) at a temperature of -70ºC (-108ºF). This low temperature quickly freezes the water inside the pipe, forming a secure ice plug, which seals in the pipe.

The ice plug forms only in the section of the pipe covered by the jacket so the resulting rise in pressure is very small and there is no damage to the pipe. The technique can be used safely on iron, lead, stainless steel, copper, brass and plastic pipes.

Portable Pipe Freezing System

HFT Pipestoppers Qwik Freeze Pipe Freezing Quick Freezer

The major advantages of using a Qwik-Freezer™ System:

Saves valuable time normally lost draining and refilling a system.
Avoids complete shutdown of systems and equipment (as in a sprinkler or water supply system).
Prevents large amounts of water wastage.
Safe and cost effective.
Standard products to suit pipe and tubes sizes from 3/8″ to 8″ (10 to 200 mm ø).
Liquid CO2 is inexpensive.
Other refrigeration systems are more expensive.
Long freeze length provides large plug size.
Liquid CO2 delivery system is notably colder than other refrigerants.
Qwik-Freezer™ Systems allow operators to source their own CO2 (no expensive refills, replacements or refrigerants).
No re-calibration of Qwik-Freezer™ products are necessary.
